ISUZU TRUCKS

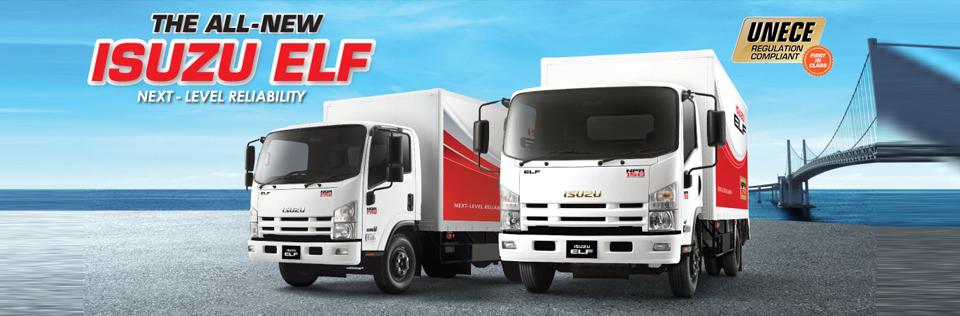

Introducing the next generation of excellence. The new ISUZU ELF gives you higher performance on every level - styling, engineering, safety, economy and environmental-friendliness - all based on new global standards. By offering a wide range of variants, the new ISUZU ELF meets the needs of businesses with a model perfect for every application, while working in harmony with society and the environment.






CALL US NOW ! 085 - 663 355 (MIRI) or 086-318668 (BINTULU)

Specification
  NPR PRO NPR 150 NQR PRO
MODEL CODE NPR71UHH NPR71UKH NPR75UHH NPR75UKH NQR75UKN NQR75ULN
Drive Train 4 x 2
Wheelbase mm 3,365 3,815 3,365 3,815 4,175
ENGINE
Model 4HG1-T 4HK1-TC
Type 4-Cylinder In-line, 4-Cycle, Water-Cooled
OHC, Turbo DOHC, Turbo with Intercooler
Displacement cc 4,570 5,193
Maximum Output kW(PS)@rpm 92(125)@2,850 110(150)@2,600
Maximum Torque Nm(kgm)@rpm 325(33)@1,800 404(41)@1,600-2,600
Emission Level Euro 2
Fuel System Direct Injection Common Rail Direct Injection
WEIGHT & CAPACITIES
Gross Vehicle Weight kg 5,000 8,500
Curb Weight kg 2,245 2,405 2,455 2,490 2,630 2,715
Front kg 1,525 1,550 1,610 1,630 1,635 1,710
Rear kg 720 855 845 860 995 1,005
Fuel Tank Capacity l 100
AXLE
Front Type Reverse Elliot, I-Beam
Front Axle Capacity(Design) kg 3100
Rear Type Banjo, Full Floating
Rear Axle Capacity(Design) kg 5,000 6,600
SUSPENSION SYSTEM
Suspension Front Semi Elliptical Alloy Steel Leaf Spring with Double Acting Telescopic Shock Absorber
Rear
TYRES & WHEELS
Tyres 7.00R-16-10PR 7.50R-16-10PR 7.00R-16-10PR 7.50R-16-10PR 7.50R-16-14PR
Wheels 5.50F-115 6.00GS-127 5.50F-115 6.00GS-127
BRAKES
Service Drum Brakes with Dual Circuit Hydraulic Control, Vacuum Assistance and Load Sensing Proporting Valve(LSPV) Drum Brakes with Dual Circuit Hydraulic Brake Booster(HBB) and Load Sensing Proportioning Valve(LSPV)
STEERING
Steering System Power Assist, Recirculating Ball Type
Min. Turning Radius m 6.30 7.10 6.30 7.10 7.80
ELECTRICAL
Battery 24V
Alternator 24V-50V
